Binary Frequency Shift Keying (BFSK) using 555 Timer

Frequency-shift keying (FSK) is a type of frequency modulation scheme in which the digital information is transmitted through discrete frequency changes of a carrier wave. The simplest FSK is binary FSK (BFSK). BFSK transmits only the binary information of a message signal, zeros or ones.


Circuit Diagram

circuit diagram


In Binary Frequency Shift Keying (BFSK) system, the carrier frequency is switched between two frequencies according to the binary input. The 555 timer functions in astable mode. The frequency of operation is given by the expression

Fo = 1.45/(Ra+2Rb)

If the resistor Ra varies, the frequency varies. When the input is at logic 1, the transistor turn ON and effectively resistance of Ra decreases, because transistor offers a resistance of a few ohms in parallel to Ra. This makes the frequency of operation less. The potentiometer Ra is used to fine tune the frequency. When the input is at logic 1, frequency of operation is given by the expression

  Fo = 1.45/(Ra//R + 2Rb)

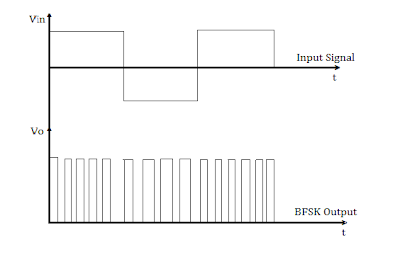

OUTPUT WAVEFORMS

Waveforms of BFSK






Tittu Thomas

Author & Editor

I'm Tittu Thomas, An Electronics and Communication Engineer from India, Kerala. I love doing hobby electronics circuits, blogging, programming, etc. Started this blog while doing my B-Tech degree under CUSAT university.
